CP Ground Nozzles
Get the Drop to the Crop!
Change Flow Rates or Droplet Sizes with a Turn of the Dial. When drift is a factor, CP’s are the best choice and are available in both high and low volume versions. These nozzles generate an even spectrum of large droplets with few driftable fines through a wide range of pressures. Plus, you don’t need to carry around a bucket of tips!
CP Floater Nozzles, Turbos & Check Valve Combos
![iowa floater pics 007](https://www.cpnozzles.com/wp-content/uploads/2024/02/iowa-floater-pics-007.jpg)
CP Floater nozzles work well for small grains, pastures, and hay fields. Designed for conditions where drift is a concern, these are excellent pre-emerge nozzles. All nozzle versions consist of 8 orifice flood nozzle flow rate selector plates. Plus, these nozzles come with a shut-off and three stainless steel deflection tips that can be customized to the customer’s choice. Each stainless tip covers a specific orifice for proper pattern, i.e., the smallest deflector tip covers the smallest two orifices, the middle tip covers the three middle orifice sizes, and the largest tip will cover the largest three orifice sizes. Change rates quickly without carrying buckets of tips; turn the dial and keep working when conditions on the field change.
![CP109 Air Stop on Case](https://www.cpnozzles.com/wp-content/uploads/2024/02/CP109-Air-Stop-on-Case.png)
![How they Work](https://www.cpnozzles.com/wp-content/uploads/2024/02/How-they-Work.png)
![Air Stop Options 2](https://www.cpnozzles.com/wp-content/uploads/2023/01/Air-Stop-Options-2.png)
![CP Air Stop main](https://www.cpnozzles.com/wp-content/uploads/2022/09/CP-Air-Stop-main.png)
![Joe Rother Air Stop 6](https://www.cpnozzles.com/wp-content/uploads/2023/01/Joe-Rother-Air-Stop-6-scaled.jpg)
![Air Stop Feature list](https://www.cpnozzles.com/wp-content/uploads/2023/01/Air-Stop-Feature-list.png)
CP Streamer Accessory Tips
For Floater Turbos & Sprayers
CPs Five Stream Accessory Tip for Floater Turbo Nozzles
This five-stream tip is excellent for directed liquid fertilizers or in a standing crop. The tip fits low and high-volume versions of CPs Floater Turbo Nozzle. The applicator pops it in, replacing any one of the turbo tips.
The tip can be used with 60″, 40″, and 30″ spacing. The tip can flow 4-77 GPA, depending on the volume nozzle and the orifice used.
![CPF270T-5ST](https://www.cpnozzles.com/wp-content/uploads/2023/01/CPF270T-5ST.png)
CPs Triple Stream Accessory Tip for CP Sprayer Turbo Nozzles.
This accessory tip is ideal for fertilizer applications and fits all three volume versions of CPs Sprayer Turbo Nozzle. The applicator pops it in, replacing any one of the turbo tips.
Designed for 20″ spacing, the tip at 14mph/40psi yields rates as low as 3.2 GPA to as high as 23.3 GPA. These rates depend on the volume nozzle and the orifice used.
![CPS275T-3SS L](https://www.cpnozzles.com/wp-content/uploads/2023/01/CPS275T-3SS-L.png)
Use any Quarter-Turn Tip with CPs Adaptor
![CPF2751](https://www.cpnozzles.com/wp-content/uploads/2023/01/CPF275-Adpater-v3.png)
CPF2751
Floater Adaptor
![CPS2751](https://www.cpnozzles.com/wp-content/uploads/2023/01/CPS275-Adapter-v1.png)
CPS2751
Sprayer Adaptor
![Ground Nozzle Catalog Image](https://www.cpnozzles.com/wp-content/uploads/2024/04/Ground-Nozzle-Catalog-Image.png)
View All Parts, Charts and
Product Information in the
CP Ground Nozzle Catalog
Download Here
CP Floater Nozzles
Pre-Emerge
Change Rates Fast
![CP-55R3](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-55R3-2-web.png)
CP-55R3
Regular Volume Floater 3-Way Nozzle
![CP-102R3](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-102R3-web.png)
CP-102R3
Regular Volume Floater 3-Way Combo Nozzle
CP Floater Turbo Nozzles & Combos
Pre-Emerge
No More Buckets of Tips
![CP-59LS](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-59LS-web.jpg)
CP-59LS
Low Volume Floater Turbo Nozzle
![CP-59HV](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-59HV-web.jpg)
CP-59HV
High Volume Floater Turbo Nozzle
![CP-109LS](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-109LS-ISO-Left-300-x300.png)
CP-109LS
Low Volume Floater Turbo Combo Nozzle
![CP-109HV](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-109HV-web.png)

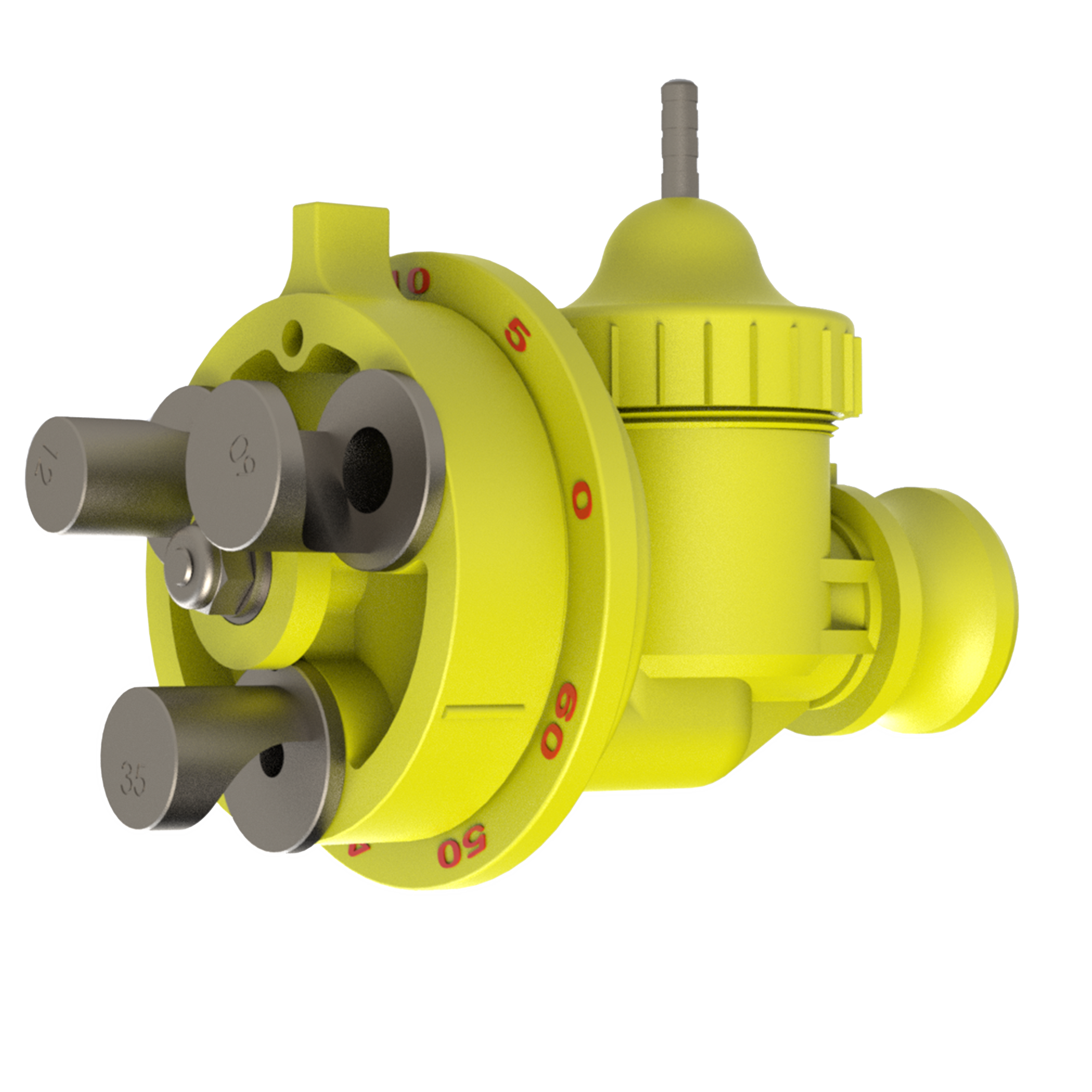

CP-109HV
High Volume Floater Turbo Combo Nozzle
![CP-109LS-AS](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-109LS-AS-web.png)
CP-109LS-AS
Low Volume Floater Turbo Combo Air Stop Nozzle
![CP-109HV-AS](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-109HV-AS-web.png)
CP-109HV-AS
High Volume Floater Turbo Combo Air Stop Nozzle
CP Sprayer Turbo Nozzles
Post-Emerge
![CP-65T-SL](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-65T-SL-web.png)
CP-65T-SL
Low Volume Sprayer Turbo Nozzle
![CP-74Q](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-74Q-web.png)
CP-74Q
Quarter Turn Quick Disconnect 4 Tip Carousel Sprayer
![CP-65T-S](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-65T-S-web.png)
CP-65T-S
Standard Sprayer Turbo Nozzle
![CP-74C](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-74C-Web.png)

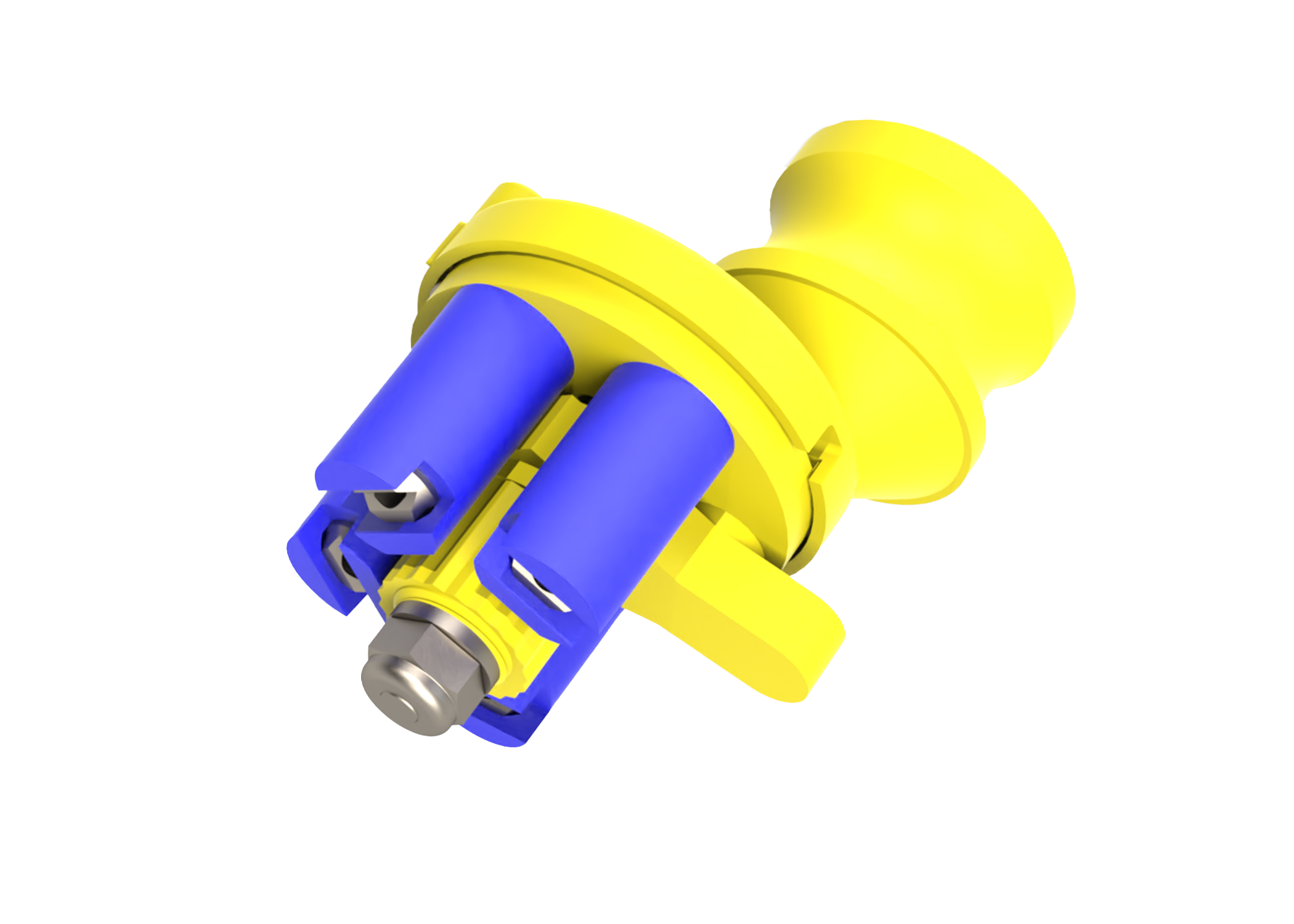

CP-74C
3/4" Cam Lock 4 Tip Carousel Sprayer
![CP-65T-SHP](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-65T-SH-web.png)
CP-65T-SHP
High Volume Sprayer Turbo Nozzle
Triple Stream Accessory Tip for Fertilizer Applications
CP Check Valves
Standard, Split Eye, & Air Stop
Quick Positive Shut-Off with CP Check Valves
![CP-110P](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-110P-web.png)
CP-110P
3/4" Pipe Inlet Check Valve
![CP-110C](https://www.cpnozzles.com/wp-content/uploads/2023/01/CP-110C-web.png)
CP-110C
3/4" Cam Lock Inlet Check Valve
![CP-110P-AS](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-110P-AS-web.jpg)
CP-110P-AS
3/4" Pipe Inlet Air Stop Check Valve
![CP-110C-AS](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-110C-AS-web.jpg)
CP-110C-AS
3/4" Cam Lock Inlet Air Stop Check Valve
![CP-112SE 3/4"](https://www.cpnozzles.com/wp-content/uploads/2023/01/new-version-CP-112SE-34-nv3.png)
CP-112SE 3/4"
3/4" Split Eyelet Inlet Check Valve
![CP-112SE 1"](https://www.cpnozzles.com/wp-content/uploads/2023/01/new-version-CP-112SE-1-nv4.png)
CP-112SE 1"
1" Split Eyelet Inlet Check Valve
CP Accessories
Connection
Get Connected with CP's
![CP-80C](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-80C-web.jpg)

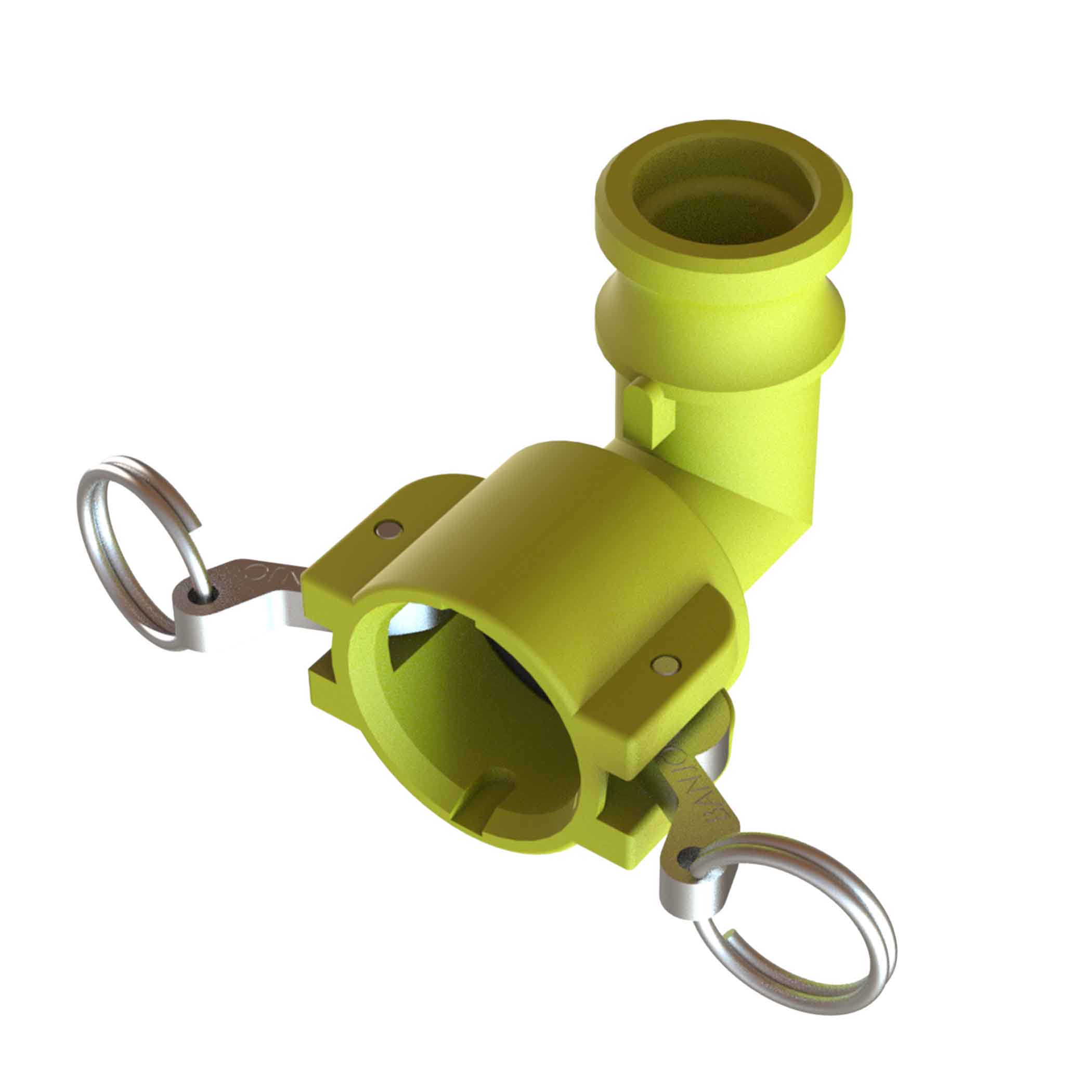

CP-80C
3/4" Cam Lock 90º Elbow
![CP-80P](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-80P-web.jpg)
CP-80P
3/4" Threaded Male Pipe 90º Elbow
![CP-80P1](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-80P1-web.jpg)
CP-80P1
1" Threaded Male Pipe 90º Elbow
![CP-81C](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-81C-web.jpg)
CP-81C
3/4" Cam Lock 45º Elbow
![CP-81P](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-81P-web.jpg)
CP-81P
3/4" Threaded Male Pipe 45º Elbow
![CP-81P1](https://www.cpnozzles.com/wp-content/uploads/2022/08/CP-81P1-web.jpg)
CP-81P1
1" Threaded Male Pipe 45º Elbow
Connect Specialized or Certified Tips to CP's with the Accessory Adaptor for Floaters & Sprayers
![CPS2751](https://www.cpnozzles.com/wp-content/uploads/2023/01/CPS275-Adapter-v2.png)
CPS2751
Sprayer Accessory Adaptor
![CPF2751](https://www.cpnozzles.com/wp-content/uploads/2023/01/CPF275-Adapter-v2.png)
CPF2751
Floater Accessory Adaptor
![Ground CalcImage 2](https://www.cpnozzles.com/wp-content/uploads/2022/08/Ground-CalcImage-2.png)
CP Quick Calc
Select Nozzle Calculator
Enter Variables
-
Speed
-
Spacing
-
GPA
View Suggested Settings for that Nozzle
